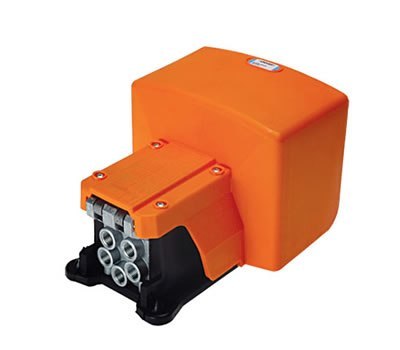

In compliance with current accident prevention regulations (ENPI), Univer produces a range of pneumatic foot valves for the widest range of applications incorporating a rigid protection. Their poppet-system design gives high flow capacities in response to short control strokes as well as operating safety even in the presence of non lubricated air.
Safety mechanisms protect the foot valve from being accidentally operated. The range of foot valves is extended to include single-switch and double-switch electric foot valves.
|AMBIENT TEMPERATURE||-10 to +70 °C|
|FLUID||Not dehumidified filtered air 50 μm, lubricated or not|
|FLUID TEMPERATURE||10 ÷ +50 °C|
|COMMUTATION SYSTEM||Poppet system|
|WAYS/POSITIONS||2/2 NC, 3/2 NC, 2/2 NO, 3/2 NO, 5/2|
|PRESSURE||Max 10 bar|
