“STANDARDS BASED” CYLINDERS

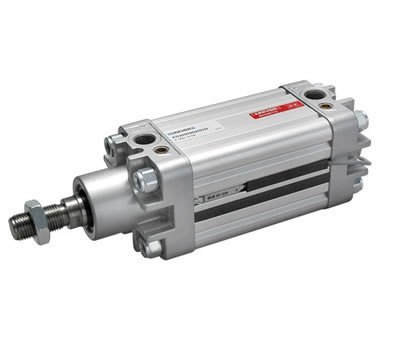

ISO 6431-VDMA 24562 Cylinders Ø 32-125 mm tube suitable for recessed sensor.

Description

Univer pneumatic cylinders comply with ISO 6431 and VDMA 24562 standards, and take advantage of the improvements arising from the research of the last years. They can fully satisfy the most demanding users.

The operation with non-lubricated air is worth mentioning, since it allows their use in many industrial sectors whilst protecting the environment. The strong construction and the selected components contribute to giving them excellent operating features and a very long life.

TYPE Air cylinder
BORE (MM) 32 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / (Ø 200 K Series only)
MOUNTING In accordance to ISO 15552, ISO 6431 & VDMA 24562
STROKE 3 metre (max)
OPERATING PRESSURE 1.5 – 10 bar
FLUID Compressed air, Filtered 50μ. Use with or without lubrication
OPERATING TEMPERATURE Max +80° Min -20°
BARREL TYPE All bore sizes utilise non tie-rod extrusion with the exception of Ø160 & 200 mm cylinders which utilise aluminium tube and steel tie-rods
